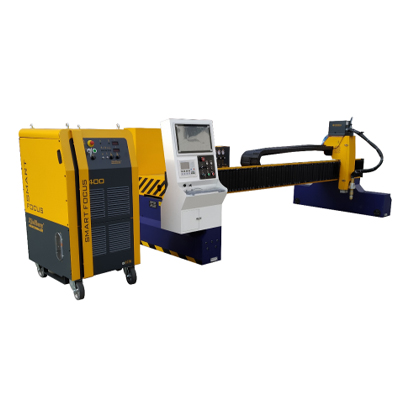

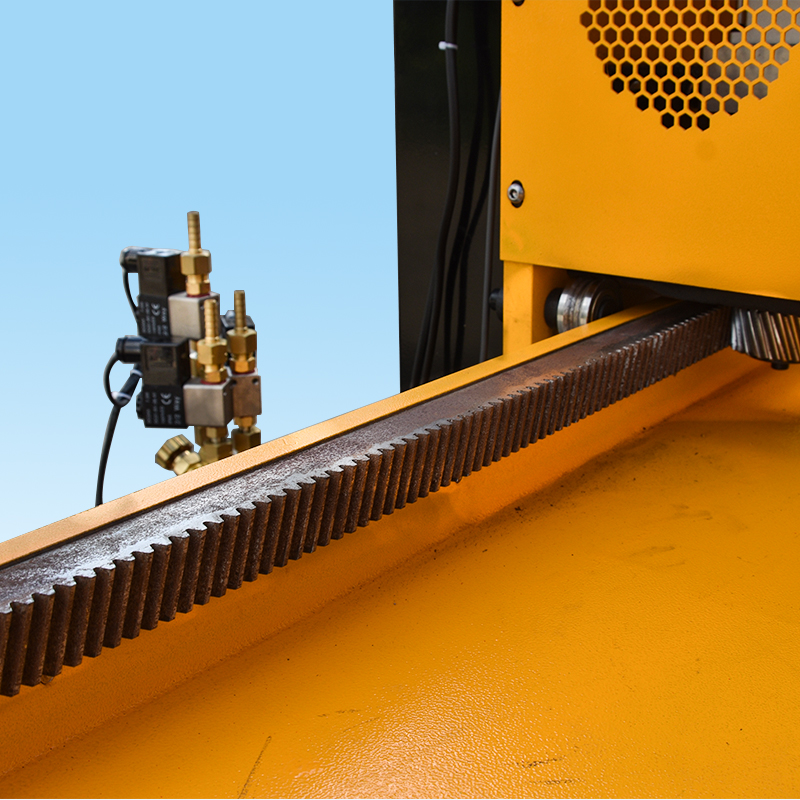

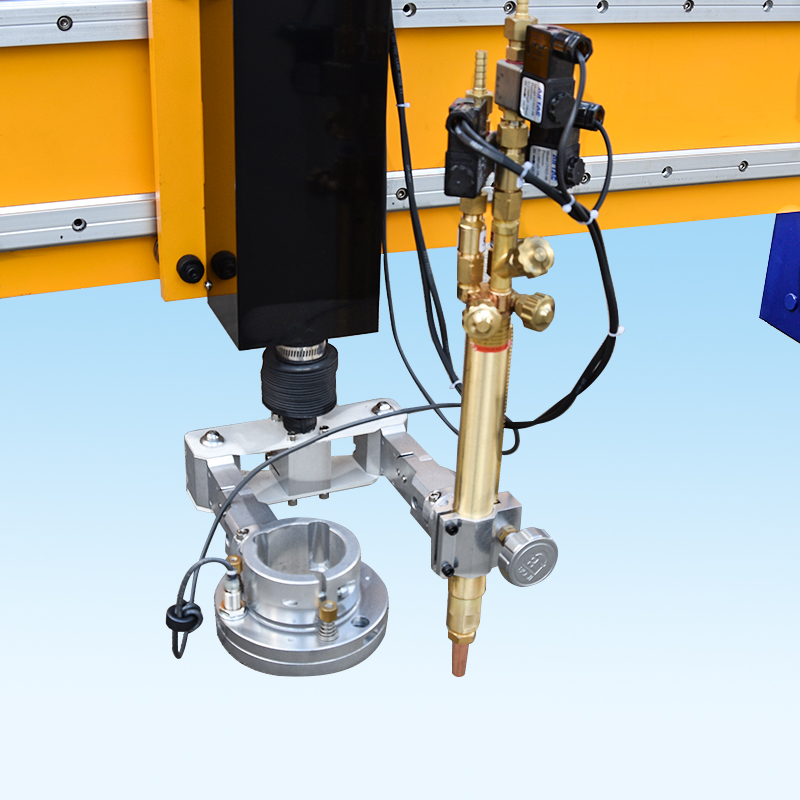

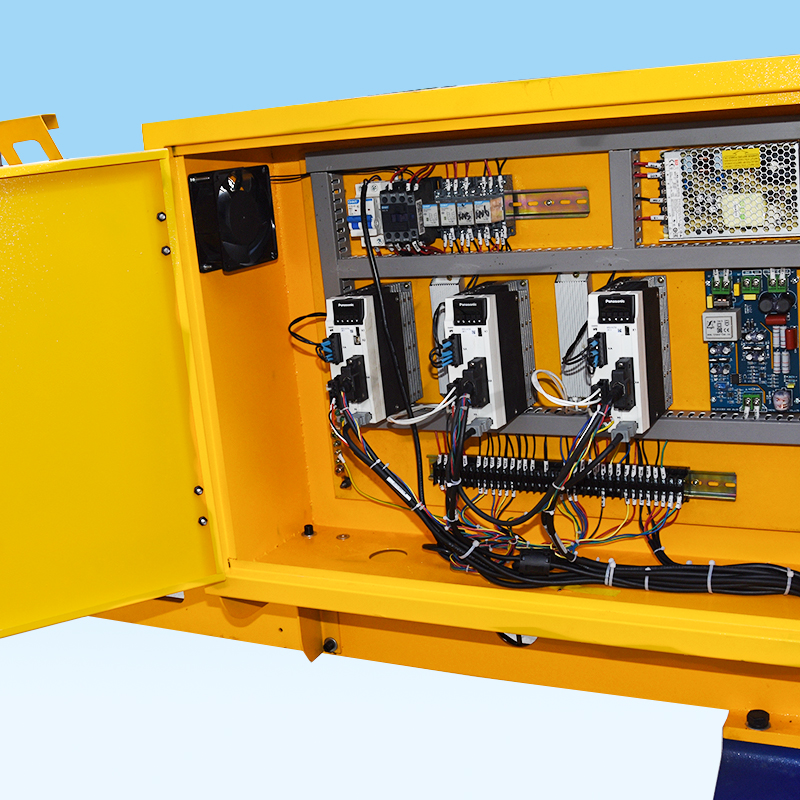

机架龙门结构,淬火处理,系统刚性好,传动精度高采用双边松下伺服驱动,行走稳定;行走端采用齿轮齿条传动,24KG钢轨,保证设备运行更加稳定;采用一体化结构,安装调试方便、快捷;等离子标配横梁挂架,极大减少了客户的准备工作量;操作简便,降低操作人员技能要求;切割方式可选火焰或等离子切割,并可快速切换;等离子割炬配置磁性防碰撞装置,尽可能防止因操作失误造成的割炬损坏。
基本参数Basic parameters
型号Model | 横向轨距Transverse distance | 切割宽度Cutting width | 有效切割长度Effective length | 割炬组数Cutting torch | 火焰切割速度Cutting speed | 最大空移速度Fastest speed | 输入电压及功率Voltage power |
CNCMG-0308D | 3000mm | 2200mm | 轨长-2000mm | 2组 | 50-750mm/min | 12000mm/min | AC220V/2000W |
CNCMG-0408D | 4000mm | 3200mm | 轨长-2000mm | 2组 | 50-750mm/min | 12000mm/min | AC220V/2000W |
CNCMG-0508D | 5000mm | 4200mm | 轨长-2000mm | 2组 | 50-750mm/min | 12000mm/min | AC220V/2000W |
CNCMG-0608D | 6000mm | 5200mm | 轨长-2000mm | 2组 | 50-750mm/min | 12000mm/min | AC220V/2000W |
CNCMG-0708D | 7000mm | 6200mm | 轨长-2000mm | 2组 | 50-750mm/min | 12000mm/min | AC220V/2000W |
导轨长度:因客户需要配置,标配为8米,有效切割长度为6米,等离子切割速度因等离子电源大小决定,割炬组数标配为2组,可自由增加。Length of guide rail: 8 m standard, 6 m effective cutting length. The plasma cutting speed is determined by the size of plasma power supply. The number of cutting torches is 2 groups, which can be increased freely. |
